Wall Mount Installation Guide

Before You Start

There are four mounting options in total: vertical or horizontal orientation, each with or without the hanging hook.

• Remove the Rubber Foot Pads from the bottom for wall mounting.

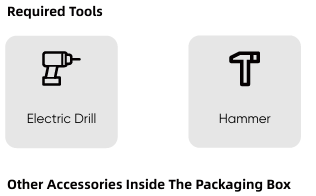

• Prepare: drill, drill bits, screwdriver, hammer, plastic anchors, screws, level, tape, safety strap.


Method 1 — Basic Wall Mount (No Hanging Strap)

Steps:

1.Choose Alignment Sticker

Use either the Horizontal or Vertical Alignment Sticker depending on your preferred orientation.

2.Drill Holes

Drill holes at the sticker marks, keeping the drill perpendicular to the wall.

3.Insert Anchors & Screws

Place plastic anchors in the holes and screw in screws, leaving 3–5mm of the screw head for hanging.

4.Hang the Calendar

Align the hanging slots on the back with the screws and slide the calendar into place.Ensure it is level and secur

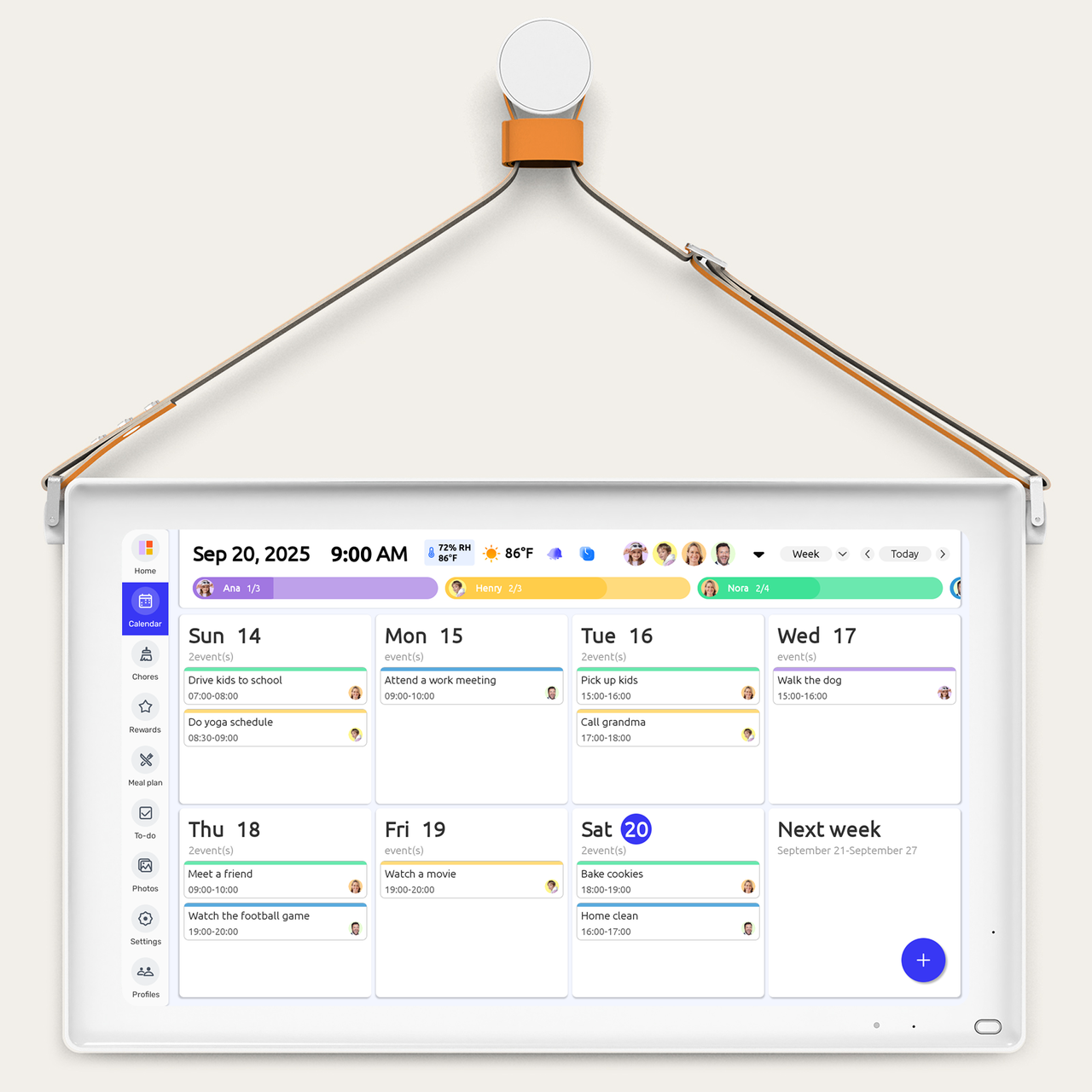

Method 2 — Hook Installation (With Hanging Strap)

Steps:

1.Attach Mounting Template

Place the template on the wall to mark drilling points.

2.Drill Holes & Insert Anchors

Drill holes and insert plastic anchors.

3.Install Hook Base & Cap

Secure the Hanging Mount Base with screws, then attach the Hook Cap.

4.Attach Clips & Straps

Install Attachment Clips on the calendar and slide on the safety strap over the hanging strap.

5.Hang the Calendar

Hang the calendar on the hook and ensure it is level and secure.

Check

• Ensure the calendar is level and stable.
• Gently test the installation.
• Verify the safety strap is in place.
